Electrical Wiring Update

NextGen Boiler – Wiring Update

Important Notice: There is a correction in the proper wiring method on the NextGen Boiler -12 and 14kW models. The existing installation manual and brochure indicate two circuit requirements for the main power feed. The correct method to meet National Electric Code is to wire one single circuit for ALL models at the appropriate conductor and breaker ampacity size.

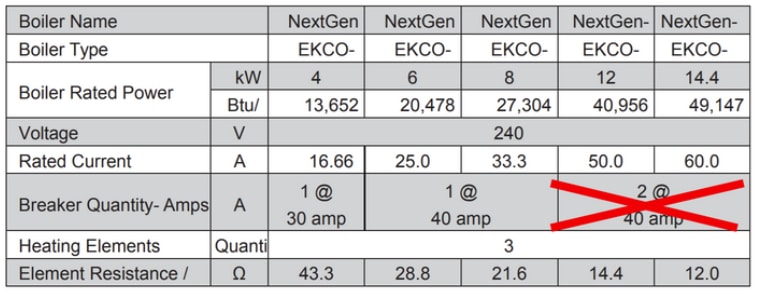

Incorrect wiring method -Two electrical breakers and two electrical runs

electrical wiring update img 1

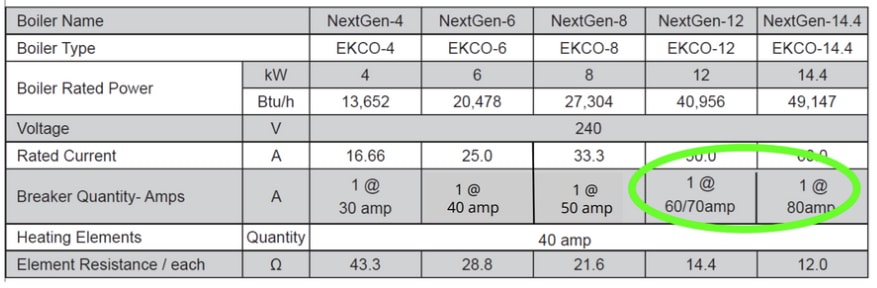

Correct wiring method – Single circuit with single wire run

electrical wiring update img 2
